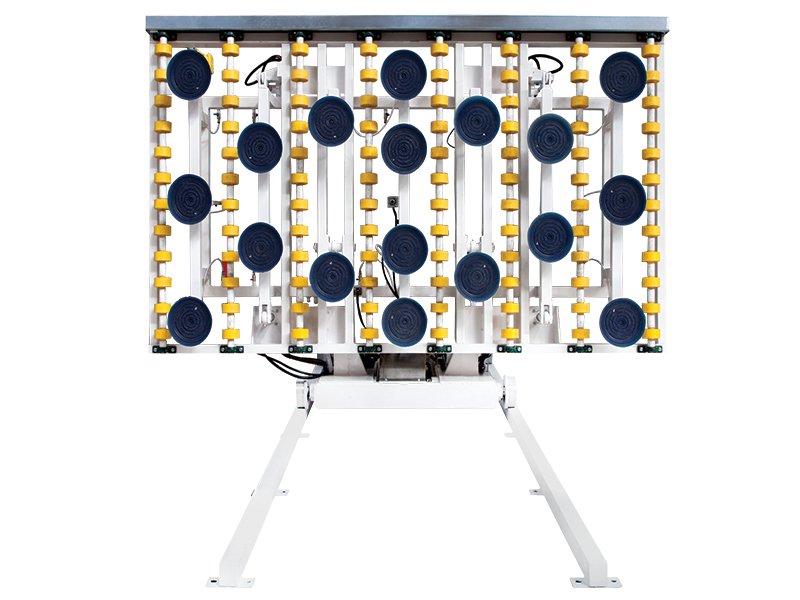

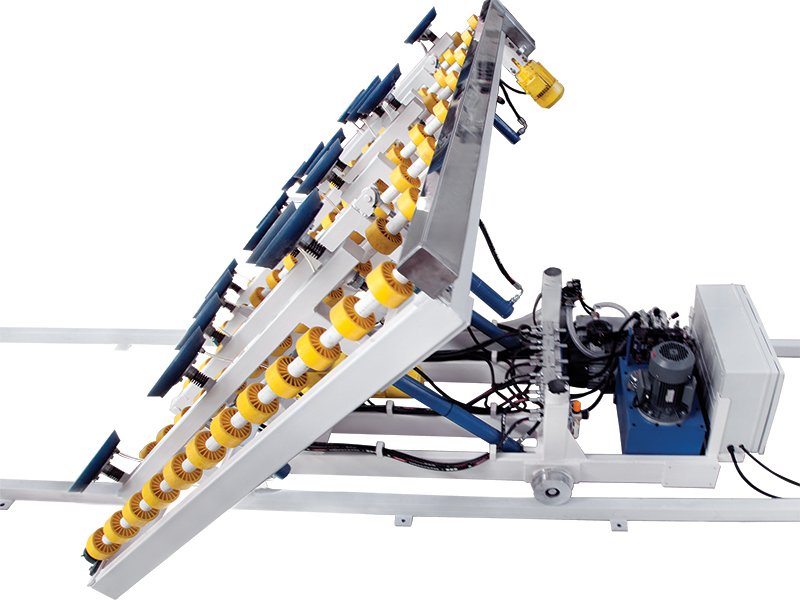

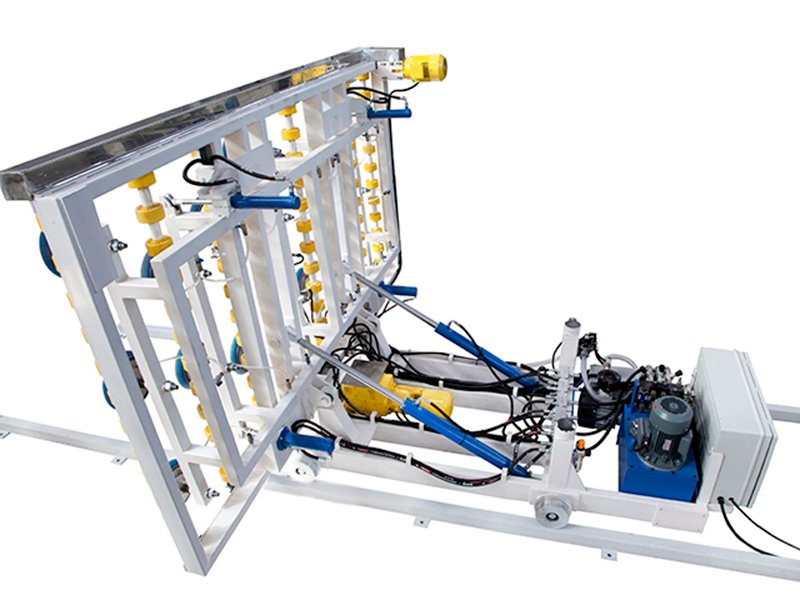

DIAL PLATE
TECHNICAL SPECIFICATION
Movement stroke length
2000 mm
...........................................................................................................................................................................................
Tilting angle
95 °
...........................................................................................................................................................................................
Working system
hydraulic system
...........................................................................................................................................................................................
Hydraulic system engine power
2.2kw 1500d/dk
...........................................................................................................................................................................................
Roll drive engine power
0.75 kw 900 d/dk
...........................................................................................................................................................................................
Back and forth engine power
1.5 kw 1400 d/dk
...........................................................................................................................................................................................
Total electric power
4 .5 kw
...........................................................................................................................................................................................
Vacuum ped diameter and number
Ø260 18 adet
...........................................................................................................................................................................................
Plate taking system
Pnömatik vakum
...........................................................................................................................................................................................
Machine dimensions
3200x2300x800
...........................................................................................................................................................................................
Machine weight
1800 kg
...........................................................................................................................................................................................
Working specification
To be able to work full automatic PLC controlled and semi-automatic
...........................................................................................................................................................................................
