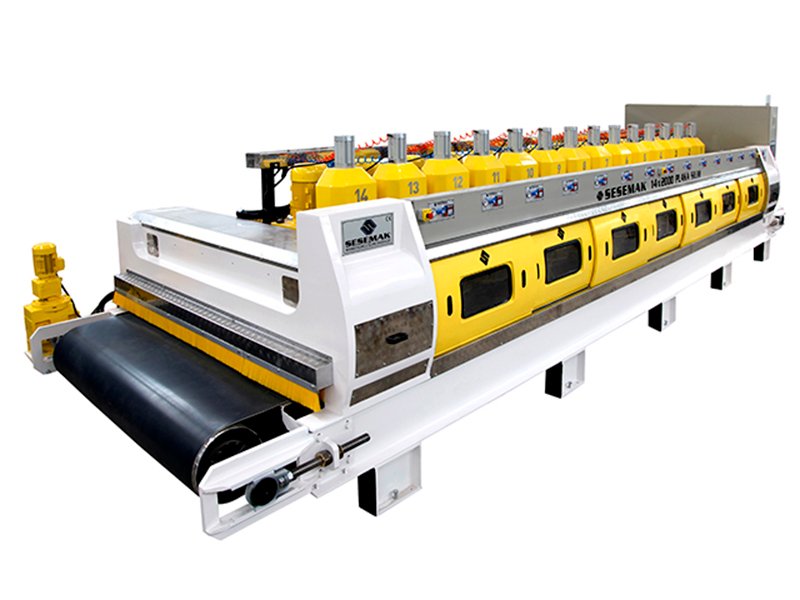

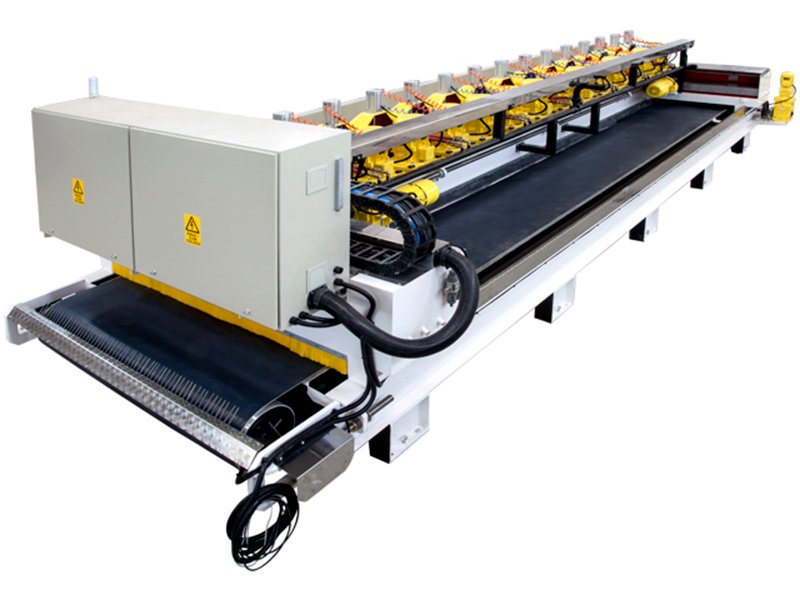

14x2000 PLATE TO POLISHED
TECHNICAL SPECIFICATION
Useful working width
2000 mm.
...........................................................................................................................................................................................
Working Thickness
Min:10mm ? Max:70mm.
...........................................................................................................................................................................................

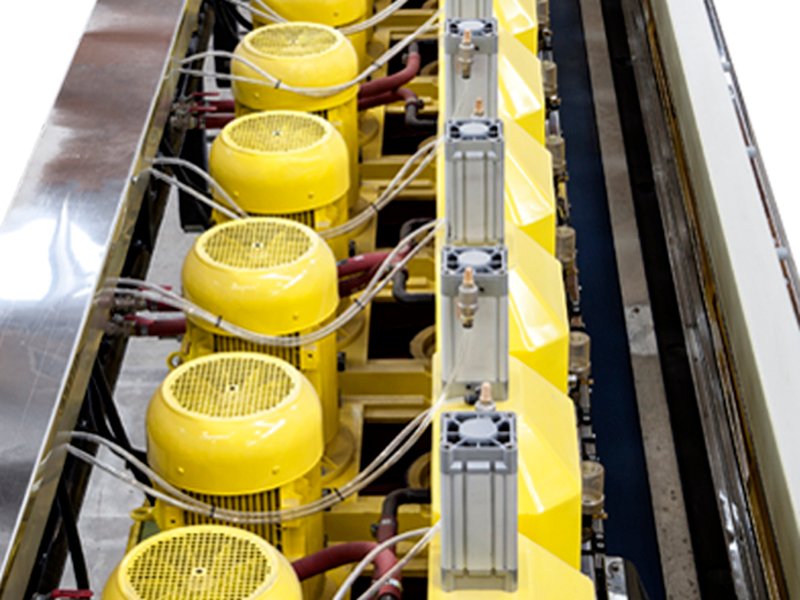

Number of Polishing head
14
...........................................................................................................................................................................................
Polishing Flange Diameter
Ø500 mm.
...........................................................................................................................................................................................
Band feature
Width:2200 mm, Thickness:7 mm,PVC flat band
...........................................................................................................................................................................................
Polishing Engine Power
11 kw. (15Hp.)-900 d/dk
...........................................................................................................................................................................................
Band Movement engine power
1,5 kw. (2Hp.)-1450 d/dk
...........................................................................................................................................................................................
Polishing Bridge Gear Box
5,5 kw.(7,5 Hp.)-1450 d/dk.( 2 x ) Magnetic brake
...........................................................................................................................................................................................
Drying Fan
5,5 kw.-3000 d/dk. 8500 m3/saat-250mmSS
...........................................................................................................................................................................................
Total Electric Power
175 kw
...........................................................................................................................................................................................
Machine Weight
Width: 3000mm, Size: 12000mm, Height: 2000mm
...........................................................................................................................................................................................
Machine Weight
24000 kg
...........................................................................................................................................................................................
Max. Water Requirement
280 lt./dk
...........................................................................................................................................................................................
Working system

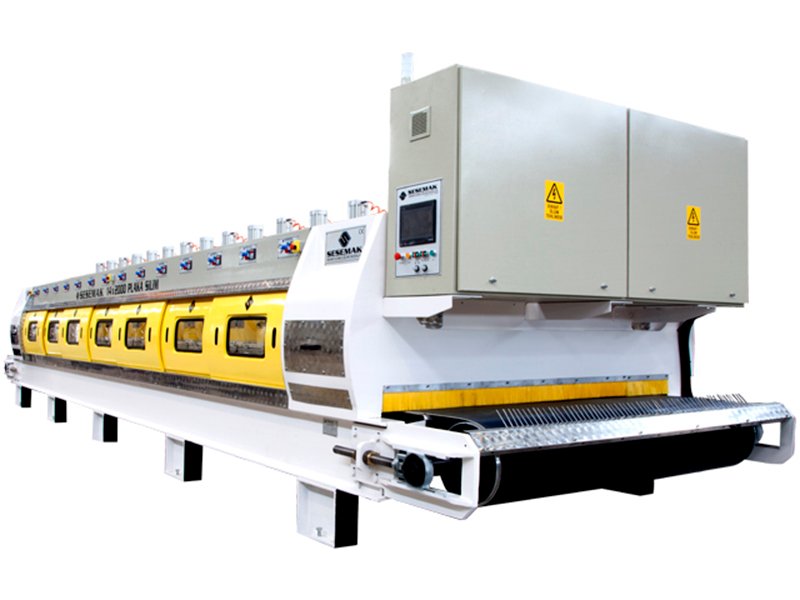

PLC controlled, see system on the screen
...........................................................................................................................................................................................
...........................................................................................................................................................................................
Machine Equipment
1-Entrance :2000x3000 mm (Driven rolley 2 x)
2-Exit : 2000x3000 mm (Driven rolley 2 x)
