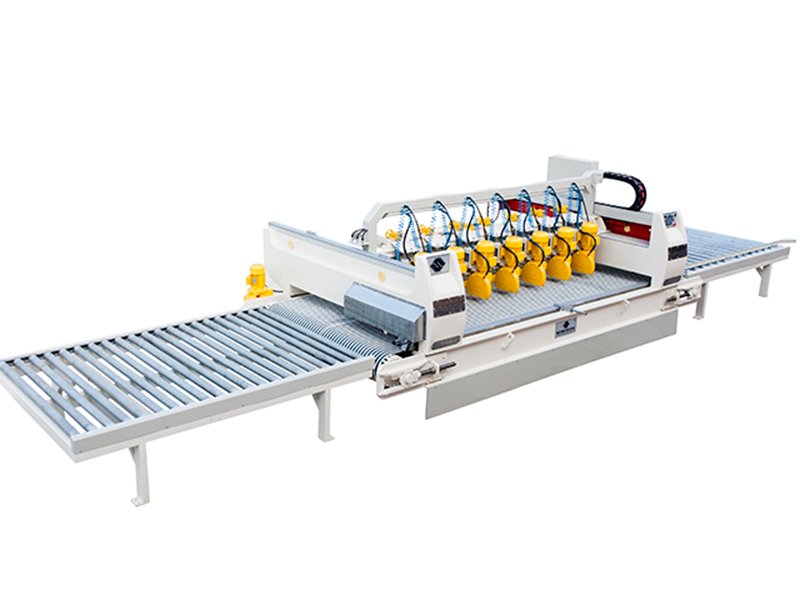

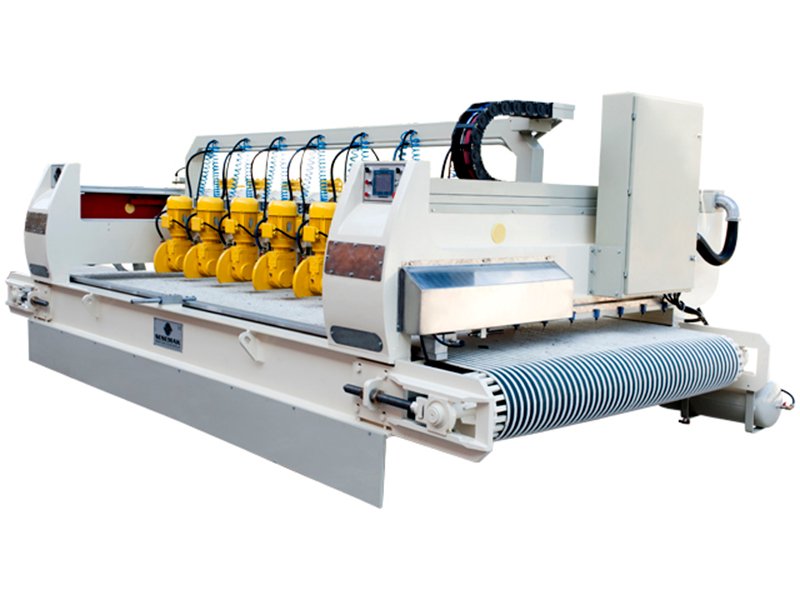

7X2000 PLATE SIZING
TECHNICAL SPECIFICATION
Useful working width
2000 mm.
...........................................................................................................................................................................................
Saw gap distance
Min 240 mm. -Max:500mm.
...........................................................................................................................................................................................
Saw gap distance
3100 mm.
...........................................................................................................................................................................................
The number of saws
7
...........................................................................................................................................................................................
Saw diameter
Ø350 mm.
...........................................................................................................................................................................................
Working thickness
8 / 30 mm.
...........................................................................................................................................................................................

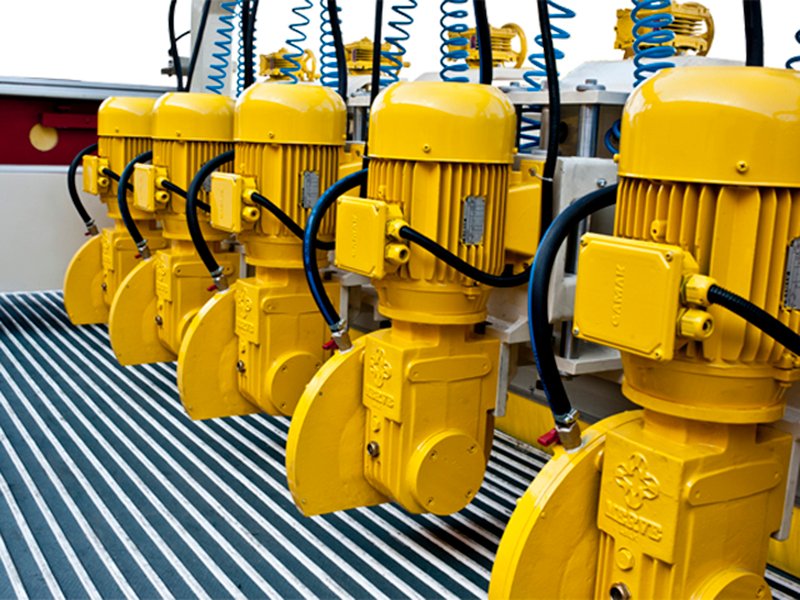

Saw engine power
5,5 Kw.(7,5 Hp.) -3000 d/dk.
...........................................................................................................................................................................................
Band movement engine power
1.5Kw. -1500d/dk.
...........................................................................................................................................................................................
Bridge movement engine power
0,75 Kw.- 1500d/dk
...........................................................................................................................................................................................
Total electrical power
40,75 Kw.
...........................................................................................................................................................................................
Size of Machine
Width:3200 mm. Size:5900 mm. Height :2100 mm.
...........................................................................................................................................................................................
Max. Water expenditure
105 lt./dk.
...........................................................................................................................................................................................
Weight machine
13000 Kg
...........................................................................................................................................................................................
Band feature
Width:2200 mm, Thickness:7 mm, PVC flat band
...........................................................................................................................................................................................
Operating System
PLC control (Omron, Mitsubishi, ABB)
...........................................................................................................................................................................................
Machine equipment
Machine input and output 2 m in length, driven, roller conveyors
...........................................................................................................................................................................................
