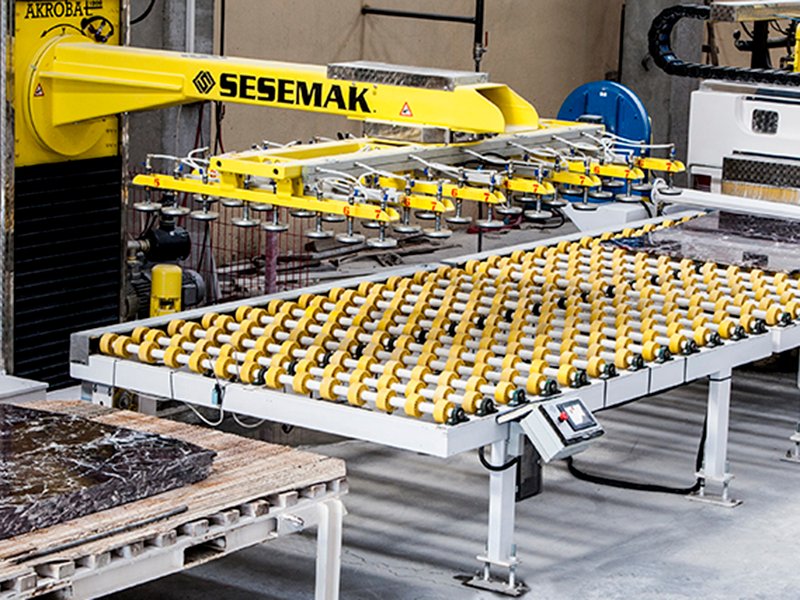

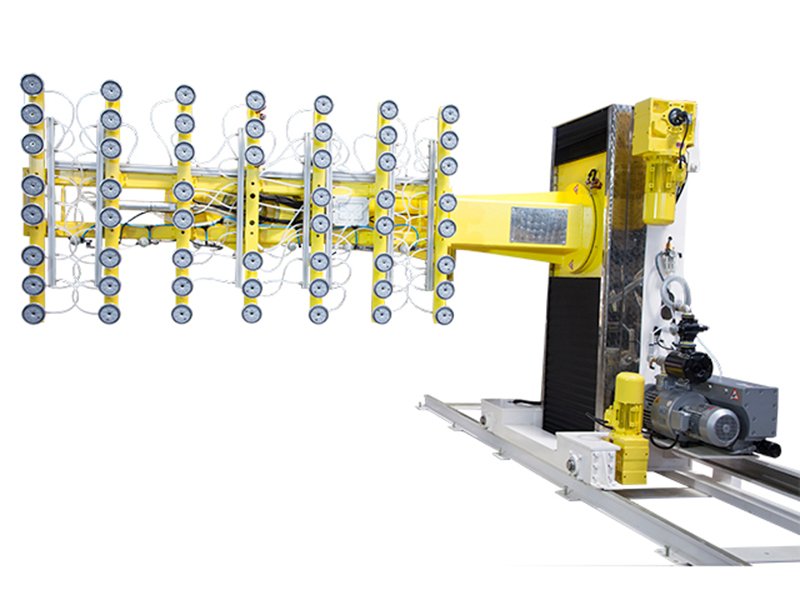

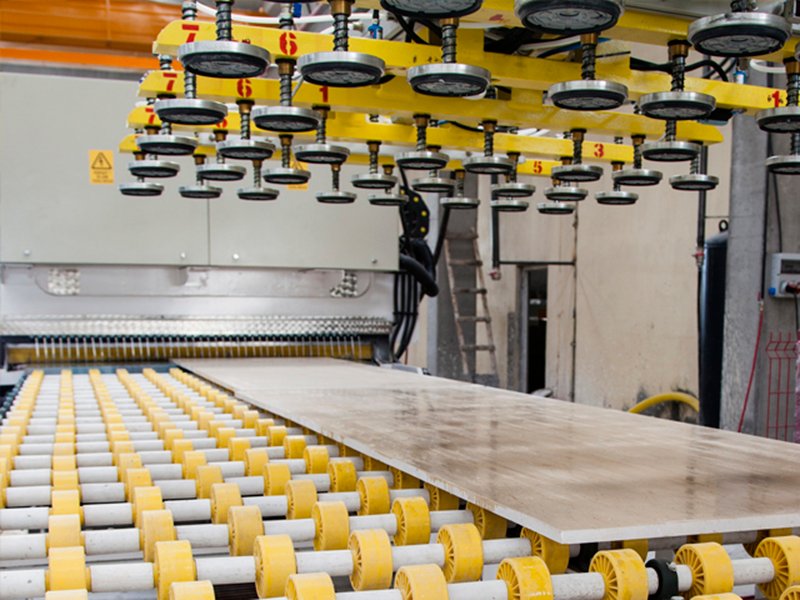

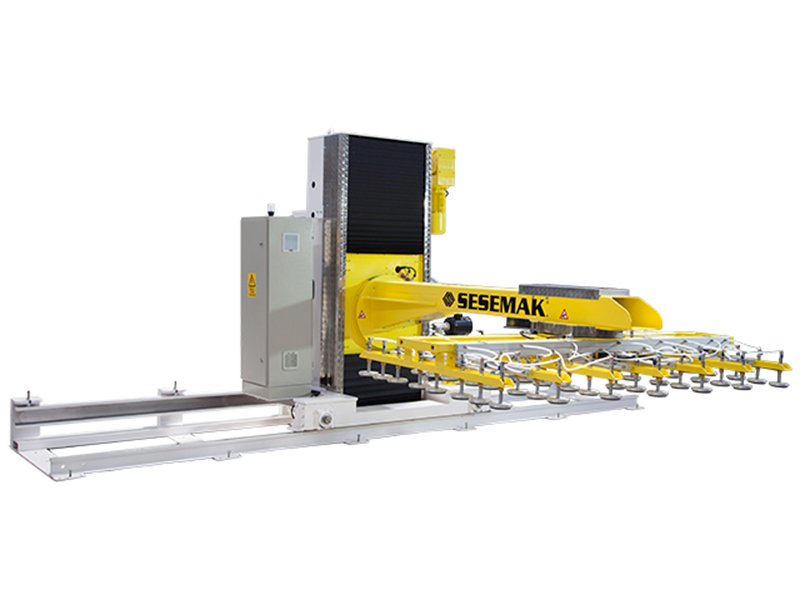

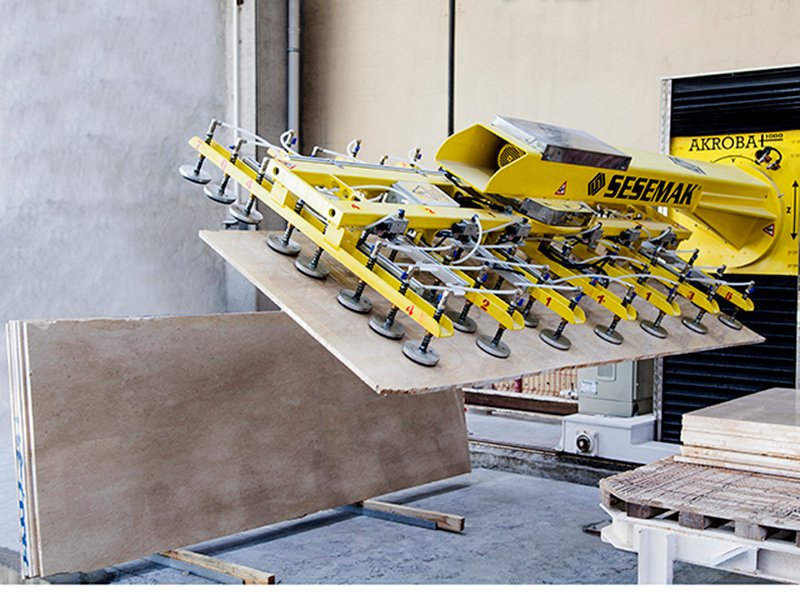

AKROBAT 1000
TECHNICAL SPECIFICATION
The Robot Main drive engine
1.5 kw 1500d/d
...........................................................................................................................................................................................
Up-Down Movement Engine
3 kw 1000d/d
...........................................................................................................................................................................................
Y rotary axis engine
2.2 kw 1500d/d
...........................................................................................................................................................................................
W rotary axis engine
1.1 kw 1500d/d
...........................................................................................................................................................................................
Maximum Plate Weight
1000 kg
...........................................................................................................................................................................................
Maximum Plate Size
3000x2000mm
...........................................................................................................................................................................................
Maximum Plate Thickness
70 mm
...........................................................................................................................................................................................
The amount of load per pad
20kg
...........................................................................................................................................................................................
Vacuum Pump (Schmalz) Capacity
190-230m3/h
...........................................................................................................................................................................................
Vacuum Generator (Schmalz) Engine
5.5 kw 1500d/d
...........................................................................................................................................................................................
Total Electricity Consumption
13.5 kw
...........................................................................................................................................................................................
Total Weight
2750 kg
...........................................................................................................................................................................................
X-axis movement capacity
10000 mm
...........................................................................................................................................................................................
Z-axis (Up-Down)movement capacity
1000 mm
...........................................................................................................................................................................................
Y-axis (Main rotary angle) Movement capacity
360°
...........................................................................................................................................................................................
W-axis (Plate rotary angle) Movement capacity
180°
...........................................................................................................................................................................................
Electrical Properties
PLC Control
...........................................................................................................................................................................................
