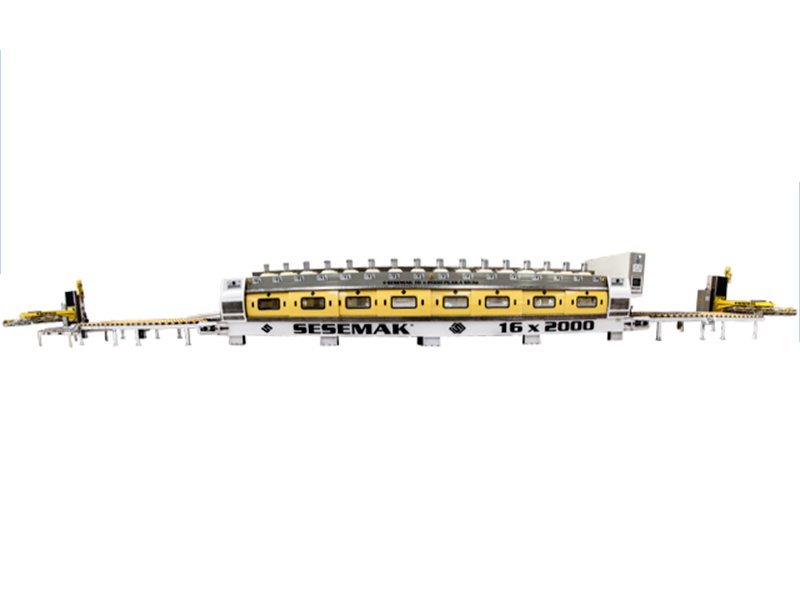

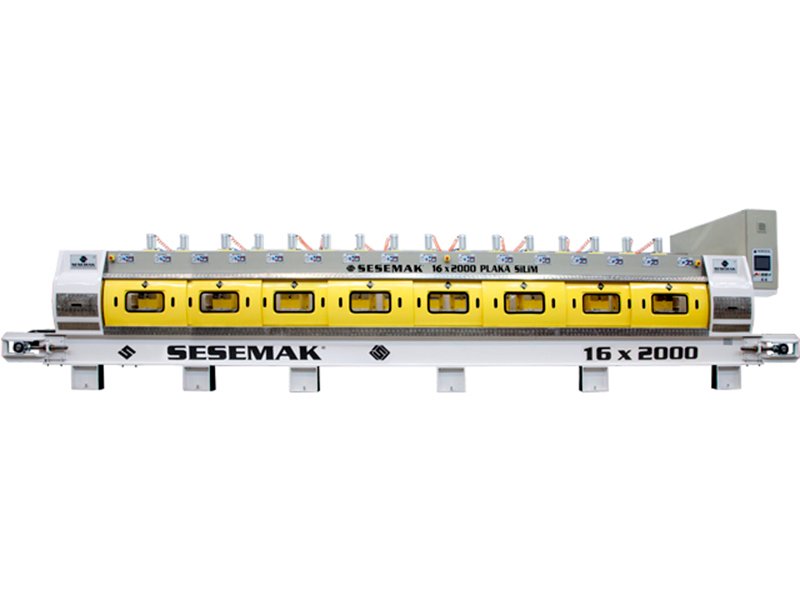

16x2000 PLATE TO POLISHED
TECHNICAL SPECIFICATION
Useful working width
2000 mm
...........................................................................................................................................................................................
Working Thickness
Min:10mm ? Max:70mm
...........................................................................................................................................................................................
Number of Polishing Head
16
...........................................................................................................................................................................................

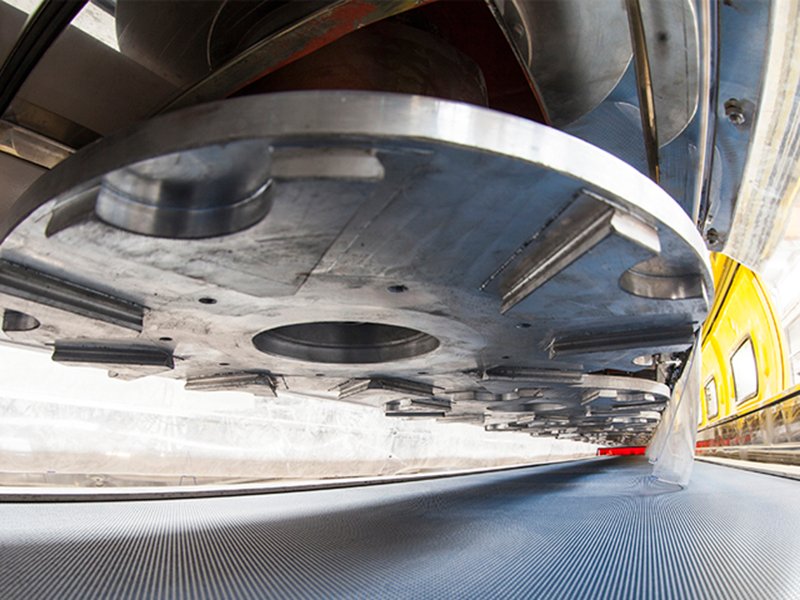

Polishing Flange Diameter
Ø500 mm
...........................................................................................................................................................................................

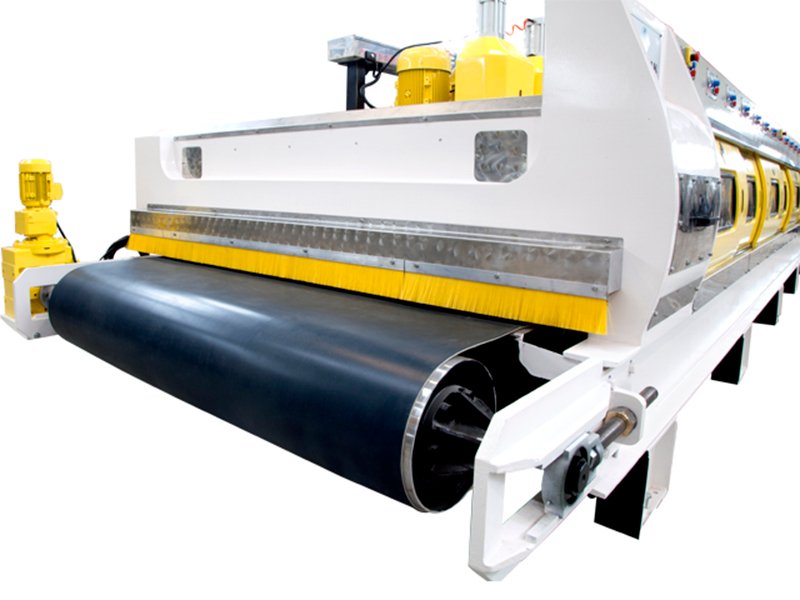

Band feature
Width:2200 mm, Thickness:7 mm,PVC flat band
...........................................................................................................................................................................................

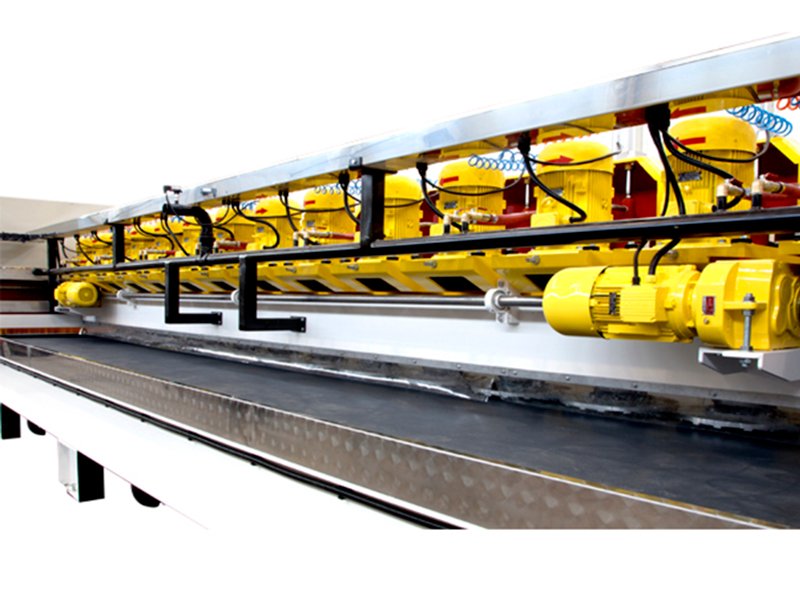

Polishing Engine Power
11 kw. (15Hp.)-900 d/dk
...........................................................................................................................................................................................
Band Movement engine power
1,5 kw. (2Hp.)-1450 d/dk
...........................................................................................................................................................................................
Polishing Bridge Gear Box
5,5 kw.(7,5 Hp.)-1450 d/dk. ( 2 x Magnetic brake )
...........................................................................................................................................................................................
Drying Fan
5,5 kw.-3000 d/dk. 8500 m3/saat-250mmSS
...........................................................................................................................................................................................
Total Electric Power
197 kw
...........................................................................................................................................................................................
Machine Dimensions
Width: 3000mm, Size: 12000mm, Height: 2000mm.
...........................................................................................................................................................................................
Machine Weight
25000 kg.
...........................................................................................................................................................................................
Max. Water Requirement
320 lt./dk
...........................................................................................................................................................................................
Working system
PLC controlled, see system on the screen
...........................................................................................................................................................................................
Machine Equipment
1-Entrance :2000x3000 mm ( Driven rolley 2x )
2-Exit : 2000x3000 mm ( Driven rolley 2x )
...........................................................................................................................................................................................
