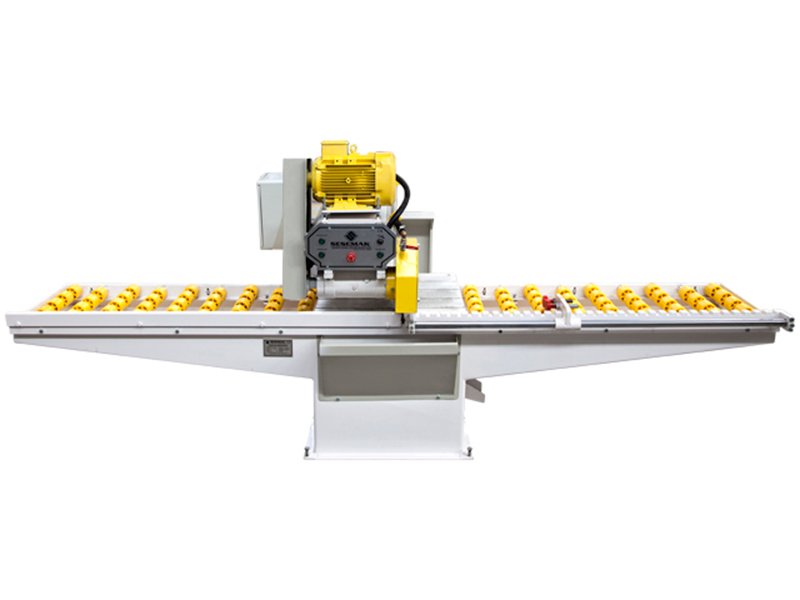

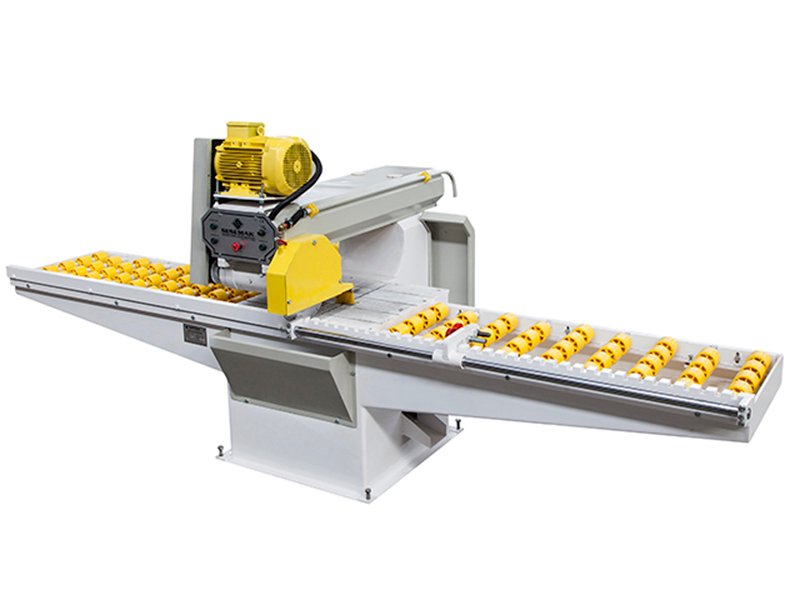

350x650 CROSS CUTTING
TECHNICAL SPECIFICATION
Working Width
650mm
...........................................................................................................................................................................................
Saw Diameter
350 mm
...........................................................................................................................................................................................
Working Thickness
8/60mm
...........................................................................................................................................................................................
Saw Engine Power
5.5kw(7,5Hp)-3000d/dk
...........................................................................................................................................................................................
Cutting Movement Engine Power
0.75kw (1Hp)-1500d/dk
...........................................................................................................................................................................................
Total electric Power
6.25 kw
...........................................................................................................................................................................................
Machine Dimensions
4500x2200x1550mm
...........................................................................................................................................................................................
Max. Water requirement
15lt./dk.
...........................................................................................................................................................................................
Saw back-and-forth movement
Mechanical syst. Speed controlled
...........................................................................................................................................................................................
Machine Weight
2100 kg
...........................................................................................................................................................................................
