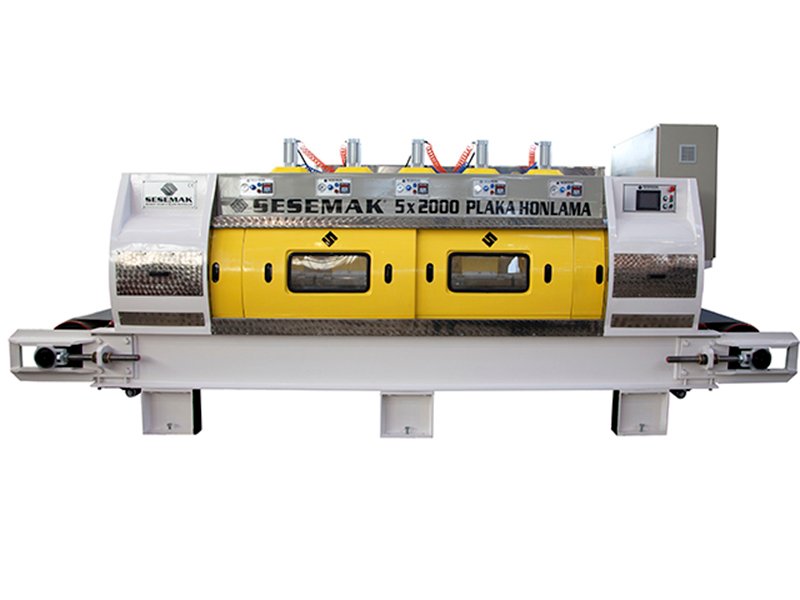

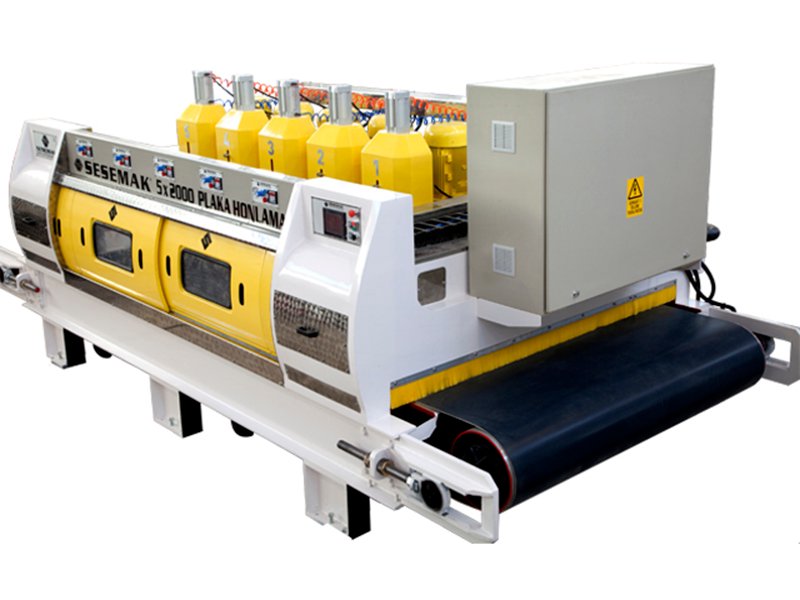

5x2000 PLATE TO HONING
TECHNICAL SPECIFICATION
Working Width
2000 mm
...........................................................................................................................................................................................
Working Thickness
Min:10mm - Max:70mm.
...........................................................................................................................................................................................

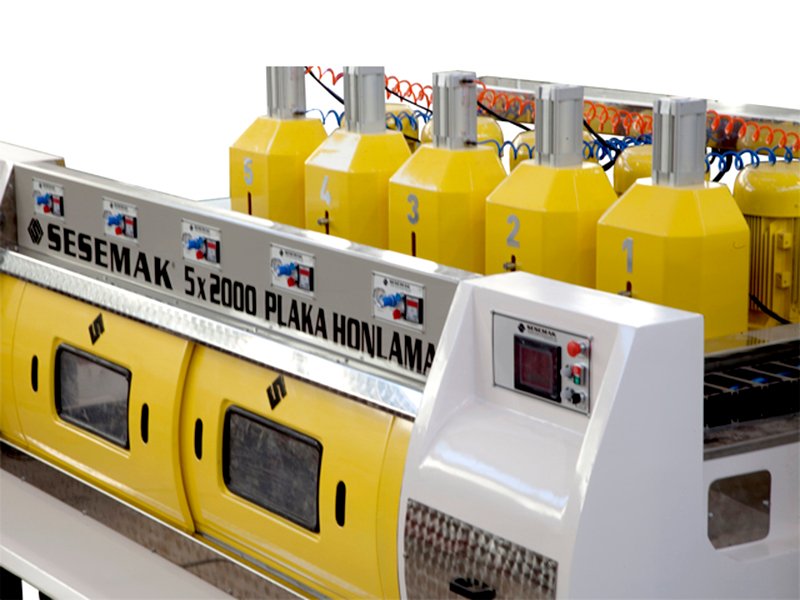

Number of Polishing Head
5
...........................................................................................................................................................................................

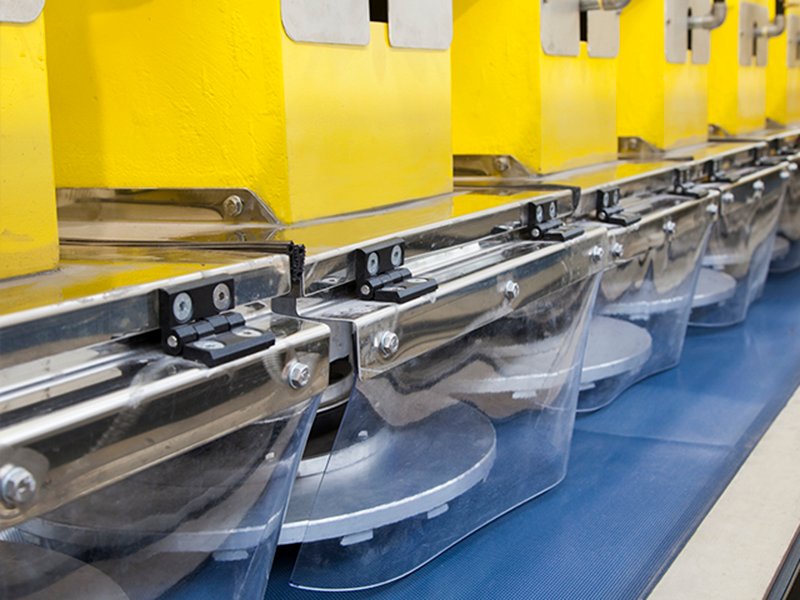

Polishing Flange Diameter
Ø500 mm.
...........................................................................................................................................................................................
Band Feature
En:2200 mm. Kalınlık:16mm kauçuk band
...........................................................................................................................................................................................
Polishing Engine Power
11 kw.(15 Hp.)-900 d/dk.
...........................................................................................................................................................................................
Band Gear Box Engine
1,5 kw.(2 Hp.)-1450 d/dk.
...........................................................................................................................................................................................
Polishing Bridge Gear Box Engine
5,5 kw.(7,5 Hp.)-1450d/dk.
...........................................................................................................................................................................................
Drying Fan
5,5 kw.(7,5 Hp.)-3000 d/dk. 8500 m³/saat-250mmSS
...........................................................................................................................................................................................
Total electric power
68 kw.
...........................................................................................................................................................................................
Machine dimensions
Width: 3000mm, Size: 7500mm, Height: 2000mm.
...........................................................................................................................................................................................
Machine Weight
11500 kg
...........................................................................................................................................................................................
Max. Water Requirement
100 lt./dk.
...........................................................................................................................................................................................
...........................................................................................................................................................................................
Operating System
PLC controlled ,electric materials ABB Mitsubishi Omron, to be able to see all system on the touch screen
Machine Equipment (At The Entrance)
1 - Driven roller conveyor.
...........................................................................................................................................................................................
Machine Equipment (Output)
2 - Driven roller conveyor.
...........................................................................................................................................................................................
