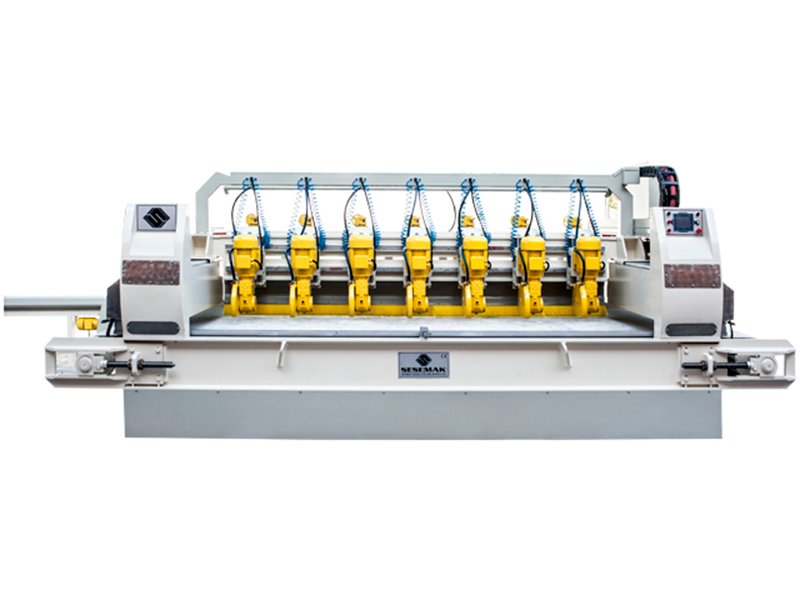

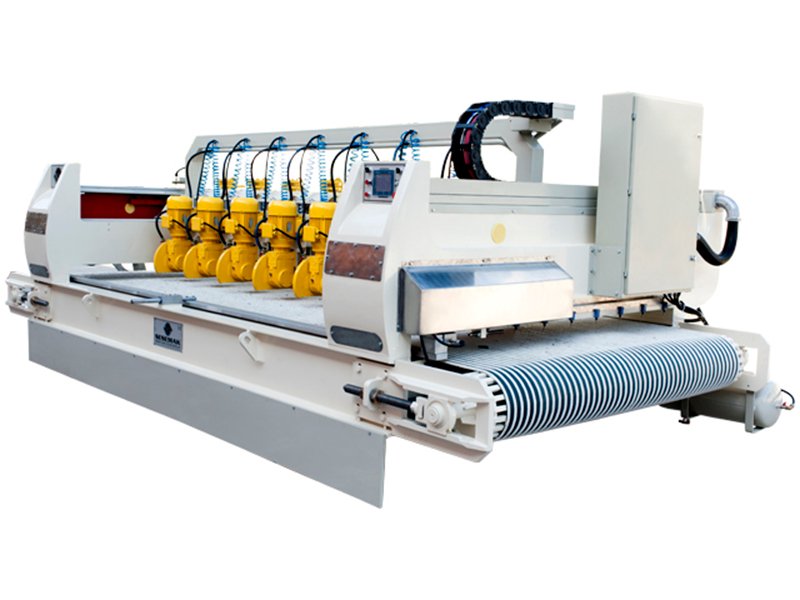

7x2000 PLAKA EBATLAMA
ÜRÜN DETAYLARI - TEKNİK ÖZELLİKLER
Çalışma Genişliği
2000 mm.
...........................................................................................................................................................................................
Testere Ara Mesafeleri
Min 240 mm. -Max:500mm.
...........................................................................................................................................................................................
Kesilecek Max.Taş Boyu
3100 mm.
...........................................................................................................................................................................................
Testere Sayısı
7 Adet
...........................................................................................................................................................................................
Testere Çapı
Ø350 mm.
...........................................................................................................................................................................................
Çalışma Kalınlığı
8 / 30 mm.
...........................................................................................................................................................................................
Testere Motor Gücü
5,5 Kw.(7,5 Hp.) -3000 d/dk.
...........................................................................................................................................................................................
Bant Yürütme Motor Gücü
1.5Kw. -1500d/dk.
...........................................................................................................................................................................................
Köprü Yürütme M. G.
0,75 Kw.- 1500d/dk
...........................................................................................................................................................................................
Toplam Elektirik Gücü
40,75 Kw.
...........................................................................................................................................................................................
Makine Ebatları
En: 3200 mm. Boy :5900 mm. Yükseklik: 2100 mm.
...........................................................................................................................................................................................
Max.Su İhtiyacı
105 lt./dk.
...........................................................................................................................................................................................
Makine Ağırlığı
13000 Kg
...........................................................................................................................................................................................
Bant Özelliği
En:2200 mm Kalınlık:16mm kauçuk bant
...........................................................................................................................................................................................
Çalışma Sistemi
PLC kontrollü (Elk.Malzemeleri Omron, Mitsubishi, ABB)
...........................................................................................................................................................................................
Makine Ekipmanları

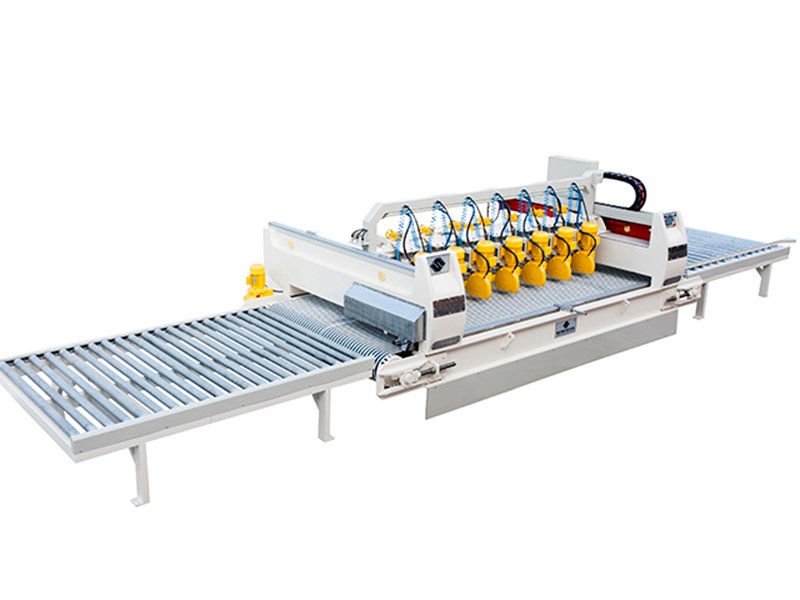

Makine giriş ve çıkışında 2 m boyda, tahrikli, rulolu konveyörler
...........................................................................................................................................................................................
