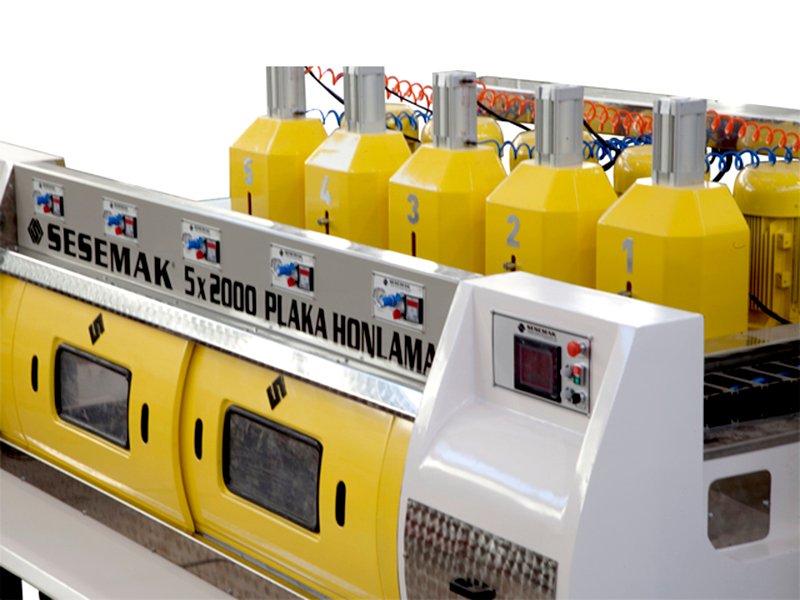

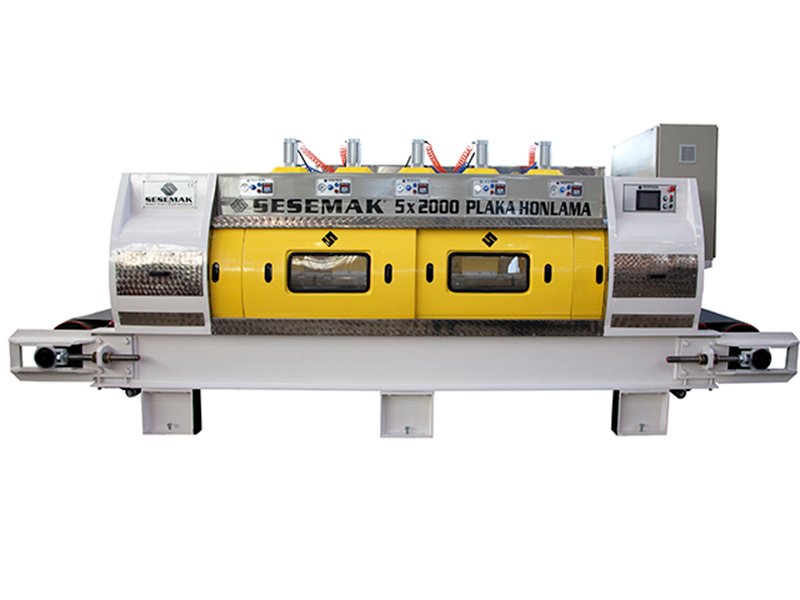

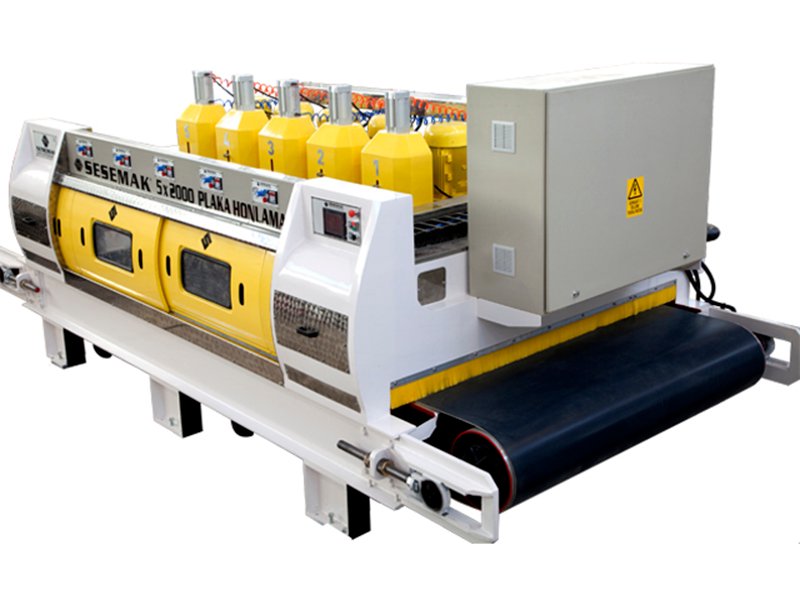

5x2000 PLAKA HONLAMA
ÜRÜN DETAYLARI - TEKNİK ÖZELLİKLER
Çalışma genişliği
2000 mm
...........................................................................................................................................................................................
Çalışma Kalınlığı
Min:10mm - Max:70mm.
...........................................................................................................................................................................................
Polisaj Sayısı
5 adet
...........................................................................................................................................................................................
Polisaj Flanş Çapı
Ø500 mm.
...........................................................................................................................................................................................
Bant Özelliği
En:2200 mm,kalınlık:7mm, PVC düz bant.
...........................................................................................................................................................................................
Polisaj Motor Gücü
11 kw.(15 Hp.)-900 d/dk.
...........................................................................................................................................................................................
Bant Redüktörü Elk.Motoru
1,5 kw.(2 Hp.)-1450 d/dk.
...........................................................................................................................................................................................
Polisaj Köprü Red.Motoru
5,5 kw.(7,5 Hp.)-1450d/dk.Manyetik Fren
...........................................................................................................................................................................................
Kurutma Fanı
5,5 kw.(7,5 Hp.)-3000 d/dk. 8500 m³/saat-250mmSS
...........................................................................................................................................................................................
Toplam Elk.Gücü
68 kw.
...........................................................................................................................................................................................
Makine Ebatları
En: 3000mm, Boy: 7500mm, Yükseklik: 2000mm.
...........................................................................................................................................................................................
Makine Ağırlığı
11500 kg
...........................................................................................................................................................................................
Max.Su İhtiyacı
100 lt./dk.
...........................................................................................................................................................................................
...........................................................................................................................................................................................
Çalışma Sistemi
PLC kontrollü ,elk.malzemeleri ABB Mitsubishi Omron, dokunmatik ekran üzerinde tüm sistemi görebilme
Makine Ekipmanları (Girişte)
1- Tahrikli ,konveyör rulo grubu.
...........................................................................................................................................................................................
...........................................................................................................................................................................................
Makine Ekipmanları (Çıkışta)
2- Tahrikli ,konveyör rulo grubu.
