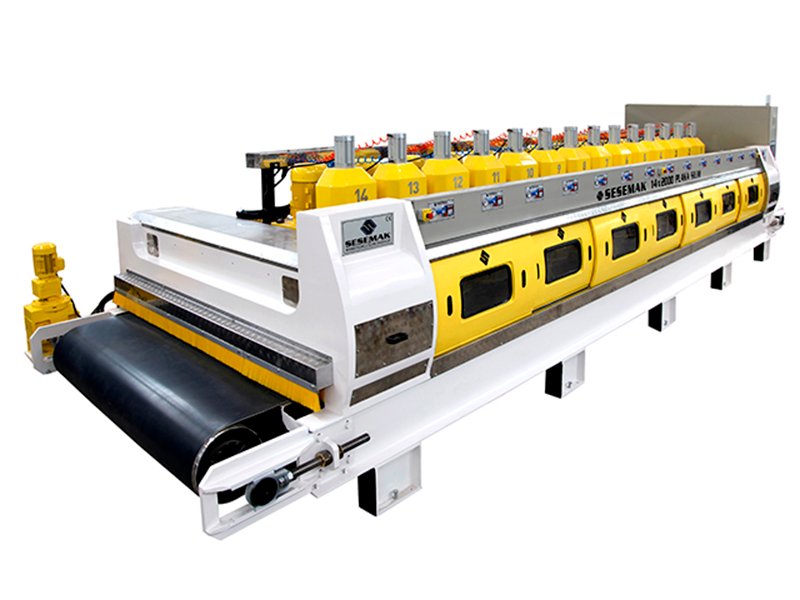

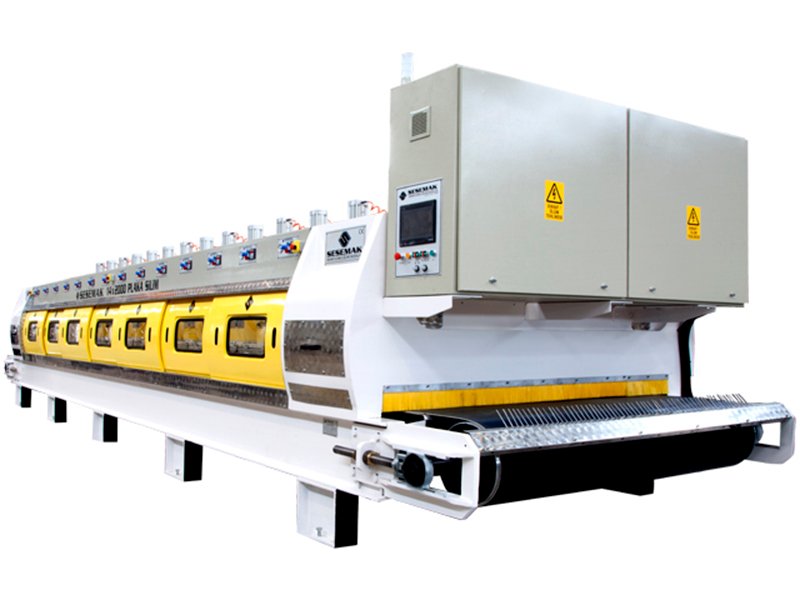

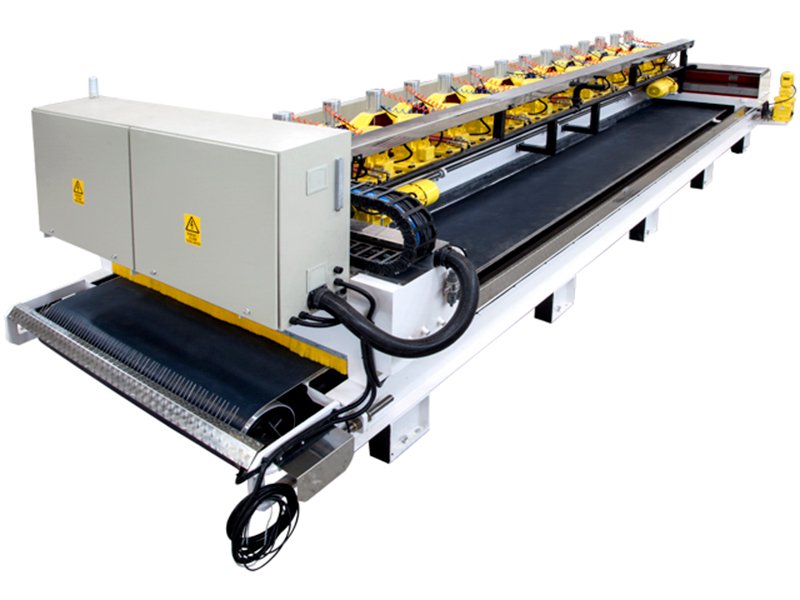

14x2000 PLAKA SLİM
ÜRÜN DETAYLARI - TEKNİK ÖZELLİKLER
Çalışma genişliği
2000 mm.
...........................................................................................................................................................................................
Çalışma Kalınlığı
Min:10mm - Max:70mm.
...........................................................................................................................................................................................
Polisaj sayısı
14 adet
...........................................................................................................................................................................................
Polisaj Flanş Çapı
Ø500 mm.
...........................................................................................................................................................................................
Bant özelliği
Genişlik:2200 mm Kalınlık:9 mm
...........................................................................................................................................................................................
Polisaj Motor Gücü
11 kw. (15Hp.)-900 d/dk
...........................................................................................................................................................................................
Bant Redüktörü Elk. Motoru
1,5 kw. (2Hp.)-1450 d/dk
...........................................................................................................................................................................................
Polisaj Köprü Red. Motoru
5,5 kw.(7,5 Hp.)-1450 d/dk.( 2 adet )
...........................................................................................................................................................................................
Kurutma Fanı
5,5 kw.-3000 d/dk. 8500 m3/saat-250mmSS
...........................................................................................................................................................................................
Toplam Elektirik Gücü
175 kw
...........................................................................................................................................................................................
Makine Ebatları
En: 3000mm, Boy: 12000mm, Yükseklik: 2000mm.
...........................................................................................................................................................................................
Makine Ağırlığı
24000 kg
...........................................................................................................................................................................................
Max. Su İhtiyacı
280 lt./dk
...........................................................................................................................................................................................
Çalışma sistemi
PLC kontrollü, dokunmatik ekran üzerinde sistemi görebilme
...........................................................................................................................................................................................
...........................................................................................................................................................................................
Makine Ekipmanları
1-Girişte: 2000x3000 mm Tahrikli Konveyör 2 adet
2-Çıkışta: 2000x3000 mm Tahrikli Konveyör 2 adet
