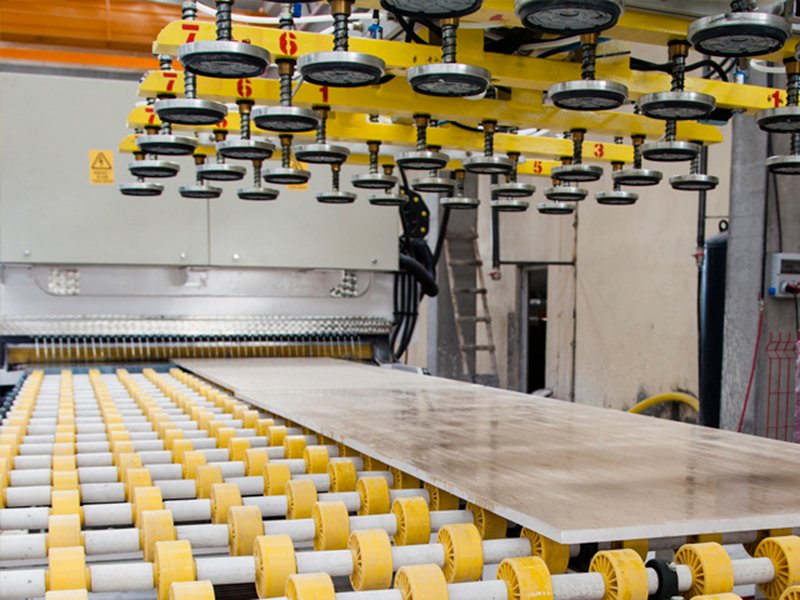

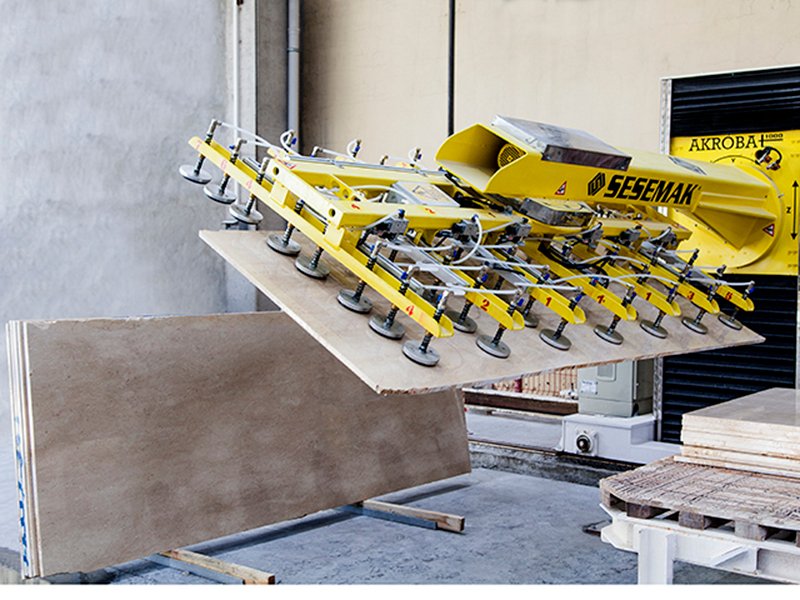

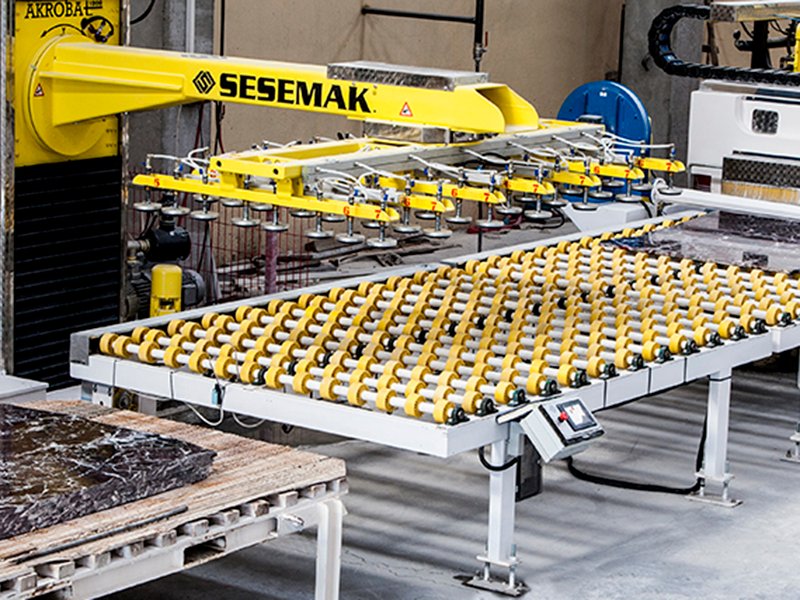

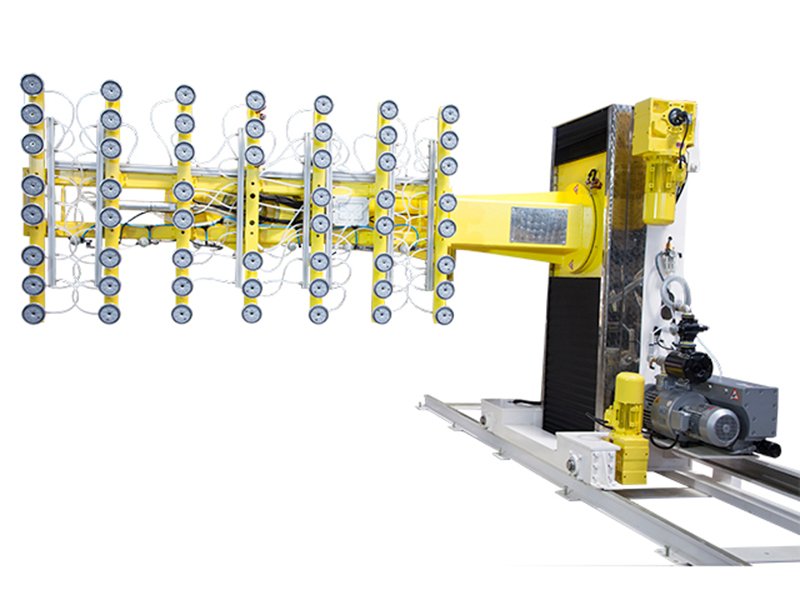

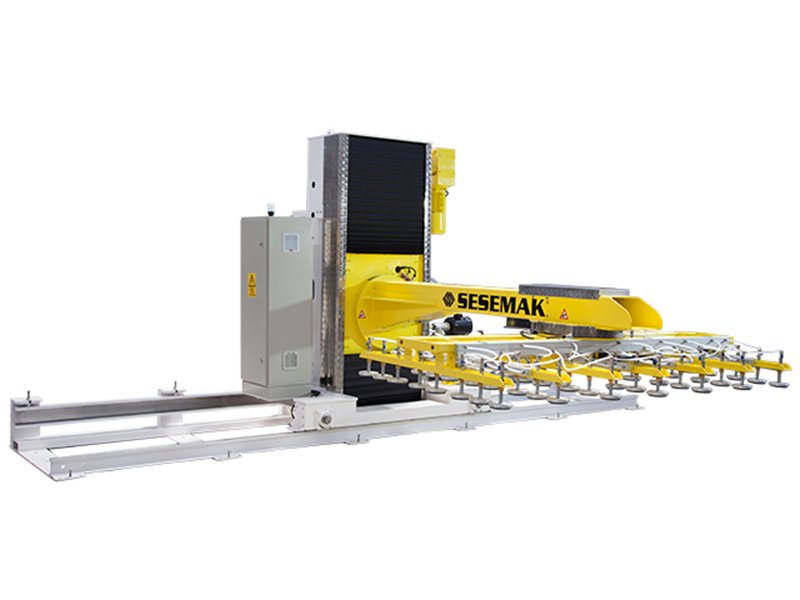

AKROBAT 1000

ÜRÜN DETAYLARI - TEKNİK ÖZELLİKLER

...........................................................................................................................................................................................

...........................................................................................................................................................................................

...........................................................................................................................................................................................

...........................................................................................................................................................................................

...........................................................................................................................................................................................

...........................................................................................................................................................................................

...........................................................................................................................................................................................

...........................................................................................................................................................................................

...........................................................................................................................................................................................

...........................................................................................................................................................................................

...........................................................................................................................................................................................

...........................................................................................................................................................................................

...........................................................................................................................................................................................

...........................................................................................................................................................................................

...........................................................................................................................................................................................

...........................................................................................................................................................................................

...........................................................................................................................................................................................

Robot Ana Yürüyüş motoru

1.5 kw 1500d/d

Toplam Elektrik Tüketimi

13.5 kw

Vakum Yukarı Aşağı motoru

3 kw 1000d/d

Toplam Ağırlık

2750 kg

Z döner eksen motoru

2.2 kw 1500d/d

X-ekseni hareket kapasitesi

10000 mm

Y döner eksen motoru

1.1 kw 1500d/d

Z-ekseni (Yukarı-Aşağı) hareket kapasitesi

1000 mm

Maksimum Taş yükleme

1000 kg

Y ekseni (Ana döner eksen) hareket kapasitesi

360° (Sağ-Sol)

Maksimum taş ebatı

3000x2000mm

W-ekseni (Plaka döner ekseni) hareket kapasitesi

180° (Sağ-Sol)

Maksimum taş kalınlığı

70 mm

Elektriksel Özellikleri

PLC Kontrollü

Ped başına düşen yük miktarı

20kg

Vakum Pompası (Schmalz)Kapasitesi

190-230m3/h

Vakum Üretici (Schmalz) Motoru

5.5 kw 1500d/d
